Our machines are designed for spreading, aerating, and turning any type of forage with speed and precision, ensuring a gentle treatment that optimally preserves the nutritional values of the product. Available in various sizes, with working widths ranging from 2.50 meters to 8 meters, we offer both trailed and mounted models, all equipped with a hydraulic closure system for simplified handling.
Key Features:
Side Spreading Device: The wheels can be manually adjusted using a convenient crank. For models PGS 800, PGS 730, PGS 650, and PGS 550, hydraulic adjustment is also available, ensuring uniform spreading even along the edges of the field.
Directional Stabilizer Shock Absorbers: This system prevents unwanted deviations, keeping the implement aligned with the tractor without compromising the mobility of the three-point hitch.
Double Joint: The double-coupling joint ensures a safe hydraulic closure of the external rotors, providing excellent flexibility and adaptation to ground unevenness.
Spring Teeth: Made from high-quality materials, the teeth can be chosen between straight or hooked designs based on specific needs.
Towing System: All our models can be equipped with a tow hitch as an alternative to the three-point attachment.
Terrain Adaptability: Thanks to the support wheel, the machine perfectly follows the contours of the land, maintaining an optimal working height. This feature is particularly advantageous in hilly or mountainous areas.

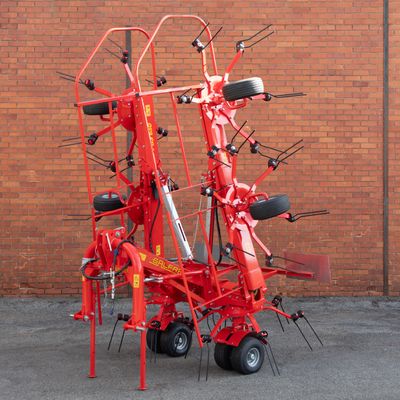

Road Transport: The PGS 800, PGS 730, and PGS 650 models can be transported on the road using a dedicated transport cart, enhancing stability and safety during movement.
Technical Specifications – PGS Series Rakes
Model
Transport Width (m)
Working Width (m)
Weight (kg)
Number of Rotors
Arms per Rotor
Rotor Diameter (m)
Minimum Power (CV)
PTO Speed (rpm)
Hydraulic Pressure (bar)
Tires (n)
Swiveling Wheels
Towing System
Hydraulic Closure
Hydraulic Steering
Tooth Safety System
PGS 320
2.50
3.20
210
2
6
1.80
15
540
-
2
•
•
•
No
•
PGS 450
2.35
4.50
360
4
5
1.40
18/25
540
225
4
No
•
•
•
•
PGS 520
2.50
5.00
400
4
6
1.60
18/25
540
225
4
No
•
Serial
•
•
PGS 550
2.90
5.40
560
4
7
1.55
20/30
540
225
4
No
•
Serial
•
•
PGS 650
2.70
6.50
780
6
6
1.40
20/30
540
225
8
No
•
Serial
•
•
PGS 730
2.90
7.30
850
6
6
1.60
25/30
540
225
8
No
•
Serial
•
•
PGS 800
3.00
8.00
950
6
7
1.80
25/30
540
225
8
No
•
Serial
•
•
Note: Models with serial hydraulic closure are designed to ensure ease of transport and high adaptability to various working conditions.
